Aarkay’s
Fans are preferred
throughout for their efficiency and
durability. The entire range includes various sizes of
Hot Air Fans, I.D. Fans, Axial Flow Fans for the Withering
Trough, and Centrifugal Fans. Reaffirming its persistent
commitment to R&D
and innovation,
AARKAY has recently launched a new range of Energy saving
Light Aluminium Alloy Axial Flow Fans for the Withering Trough
with improved profile designs which reduce power consumption and offer 20% higher CFM capacities as
compared to the old-generation Aluminium Blade Fans with the
same size and power input.

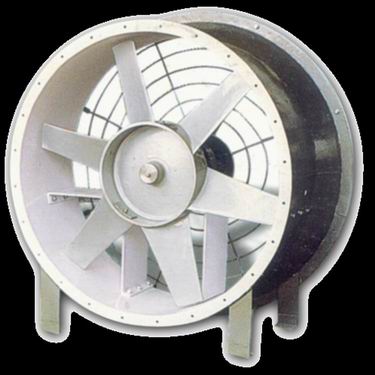

AXIAL
FLOW FANS
HIGHER
EFFICIENCY AND SUSTAINED PERFORMANCE WITH LIGHT ALUMINIUM
ALLOY BLADES
Aarkay
Axial Flow fans meet the requirements of General ventilation
and air conditioning field. In the Tea Industry 'AARKAY' AXIAL
FLOW FANS are used in withering troughs for exhaust and in
miracle mills.
Aarkay
Axial Flow fans are designed and constructed to give efficient
trouble free service and both initial and operating cost are
reduced to minimum. Cast aluminium alloy 6 bladed impeller
directly mounted on Motor Shaft and aerodynamically designed
wide blades ensures smooth and streamlined airflow with
minimum turbulence for withering tea leaves so that they roll
well and take on twist. Rotors are dynamically balanced and
run within permissible noise and vibration levels. Casings are
made of heavy gauge drums with drilled flange at both ends and
complete with legs for horizontal, ceiling or floor mounting.
A Fan Guard for safety and Inlet flaring for minimizing eddy
losses are regular features of two design.
Dampers,
Transition pieces, Hot Air risers, D.O.L. or Star-Delta
Starters and Reversible Switches are quoted as optional
extras.
Aarkay
Axial Flow fans are generally manufactured in 3 popular sizes
to suit different leaf bed areas of troughs withering but
special size Fans to suit Various Capacities of troughs can be
custom built as per buyers' requirement.
|
|
TECHNICAL DATA |
|
FAN
SIZE
(Motor
RPM = 960)
|
MODEL |
SPEED & STATIC
PRESSURE |
Capacity (subject to +/- 5% variation) at MSL (Std. air at 20 degrees Centigrade) |
|
54" x 10 HP |
AA5410 |
960 RPM,
0.5" W.G. |
53000
CFM |
|
54" x 7.5 HP |
AA5407 |
960 RPM,
0.5" W.G. |
46000
CFM |
|
48" x 7.5 HP |
AA4807 |
960 RPM,
0.5" W.G. |
44500
CFM |
|
48" x 5 HP |
AA4805 |
960 RPM,
0.5" W.G. |
33500
CFM |
|
48" x 3 HP |
AA4803 |
960 RPM,
0.5" W.G. |
25000
CFM |
|
44" x 5 HP |
AA4405 |
960 RPM,
0.5" W.G. |
30000
CFM |
|
44" x 3 HP |
AA4403 |
960 RPM,
0.5" W.G. |
23000
CFM |
|
40" x 5 HP |
AA4005 |
960 RPM,
0.5" W.G. |
26000
CFM |
|
40" x 3 HP |
AA4003 |
960 RPM,
0.5" W.G. |
21500
CFM |
|
40" x 2 HP |
AA4402 |
960 RPM,
0.5" W.G. |
18000
CFM |
|
36" x 3 HP |
AA3603 |
960 RPM,
0.5" W.G. |
20000
CFM |
|
36" x 2 HP |
AA3602 |
960 RPM,
0.5" W.G. |
16000
CFM |
|
|
|
|
|
|

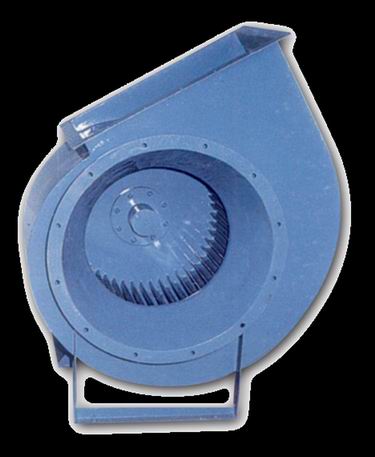

CENTRIFUGAL
FANS
HOT
AIR, INDUCED DRAFT AND FERMENTING FANS
Aarkay
Centrifugal Fans are most suitable for Ventilation, Fume,
Exhaust, Forced Draft, Induced Draft Hot Air Circulation,
Cement Kiln Exhaust, Combustion Air, and Pneumatic Conveying.
In the Tea Industry, Aarkay Centrifugal Fans are best suitable
for discharging hot air produced by oil heaters and coal fired
stoves into Tea drying chambers and withering troughs, for
providing cold air to trough fermentations and as I.D. Fans.
Impellers
are made of High Strength die-pressed steel blades. The
complete impeller assembly is mounted on two heavy duty
bearings and housed in a mild steel casing. Aarkay Centrifugal
Fan are designed to ensure maximum air delivery at required
pressure and minimum power requirement .
The
Fans may be arranged for V-drive or directly mounted on Motor
Shaft Speed is adjustable by changing the Motors and / or
pulleys. Complete Electrical drive systems are supplied with
Fans, if required.
|
|
TECHNICAL DATA |
|
FAN
SIZE
(Motor
RPM = 1500)
|
MODEL |
SPEED* & STATIC
PRESSURE |
Capacity
(subject to +/- 5% variation) |
|
HOT
AIR FANS |
|
42" x 30 HP |
AH4230 |
575 RPM,
2.5" W.G. |
28000
CFM |
|
40" x 25 HP |
AH4025 |
525 RPM,
2.5" W.G. |
23000
CFM |
|
35" x 15 HP |
AH3515 |
575 RPM,
2.5" W.G. |
20500
CFM |
|
30" x 10 HP |
AH3010 |
600 RPM,
2.5" W.G. |
15500
CFM |
|
INDUCED DRAFT FANS |
|
30" x 10 HP |
AI3010 |
600 RPM,
2.5" W.G. |
11600
CFM |
|
25" x 7.5 HP |
AI2507 |
720 RPM,
2.5" W.G. |
7600 CFM |
|
25" x 5 HP |
AI2505 |
720 RPM,
2.5" W.G. |
6600 CFM |
|
20" x 5 HP |
AI2005 |
900 RPM,
2.5" W.G. |
5800 CFM |
|
17.5" x 3 HP |
AI1703 |
1000
RPM, 2.5" W.G. |
3600 CFM |
|
FERMENTING FANS |
|
24" x 7.5 HP |
AF2407 |
1440
RPM, 2.5" W.G. |
9000 CFM |
|
20" x 5 HP |
AF2005 |
1620
RPM, 2.5" W.G. |
6000 CFM |
|
18" x 3 HP |
AF1803 |
1760
RPM, 2.5" W.G. |
4500 CFM |
|
* Fan
Speed given above is the recommended value and may be adjusted
as per the requirement by changing the pulleys. Moreover,
in case of usage of hot air fans in withering troughs, Limit
load design fans with lower motor ratings and higher RPMs are
employed.
|
|
FAN DIRECTION & DISCHARGE |
|
|
|
|
|
|
